CPX Series: Programmable DC Power Supplies

Aim-TTi Instruments India's CPX Series provides advanced programmable DC power supplies suitable for bench, system, and ATE applications. Offering single and dual outputs with power ranging from 360 to 840 watts

❮ ❯

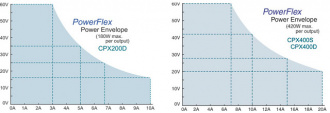

PowerFlex Technology: Achieve variable voltage and current combinations within a maximum power range, allowing up to 60 volts and up to 20 amps.
Maximum Output Power: Deliver 180 watts or 420 watts per output, with isolated outputs that can be wired in series or parallel for versatile use.
Operation Modes: Supports constant voltage or constant current operation with advanced features like Settings Locking (S-Lock) and variable OVP trips.
Compact Design: Housed in a quarter or half-rack 3U case size, making it ideal for space-constrained environments.
Remote Control Interfaces: Available with RS232, USB, and LAN/LXI compliant interfaces. GPIB is optional for P models.
Enhanced Connectivity: Selectable remote sense terminals and isolated analogue remote control available (CPX400SA only).

Datasheet - (PDF / English)

Model	Price
CPX200D Bench/System/ATE Programmable DC Power Supply Dual Output, 2 x 60V/10A 180W, No Interfaces	₹ 1,42,324.00	Quantity
CPX200DP Bench/System/ATE Programmable DC Power Supply Dual Outputs, 2 x 60V/10A 180W, USB, RS232 & LAN/LXI interfaces, GPIB optional	₹ 1,75,490.00	Quantity
CPX400S Bench/System/ATE Programmable DC Power Supply Single Output, 60V/20A 420W, No Interfaces	₹ 1,16,081.00	Quantity
CPX400SA Bench/System/ATE Programmable DC Power Supply Single Output, 60V/20A 420W, Isolated Analogue Interface	₹ 1,37,977.00	Quantity
CPX400SP Bench/System/ATE Programmable DC Power Supply Single Output, 60V/20A 420W, USB, RS232, LAN/LXI interfaces, GPIB optional	₹ 1,49,086.00	Quantity
CPX400D Bench/System/ATE Programmable DC Power Supply Dual Outputs, 2 x 60V/20A 420W, No Interfaces	₹ 1,87,565.00	Quantity
CPX400DP Bench/System/ATE Programmable DC Power Supply Dual Outputs, 2 x 60V/20A 420W, USB, RS232 & LAN/LXI interfaces, GPIB optional	₹ 2,19,765.00	Quantity
