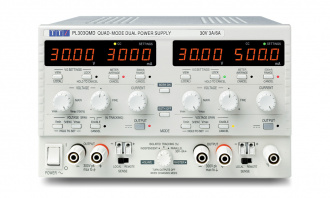

PL Series: Linear Regulated DC Power Supplies

Key Features :

• Single, Dual, or Triple Outputs: Choose from models with 6V/8A up to 60V/1.5A for versatile power supply options.
• Linear Regulation: Provides the best performance with minimal noise and excellent stability.
• Ultra-Compact Design: Saves space on the bench or in the system rack.
• True Analogue Controls: Intuitive controls for easy operation and precise adjustments.
• S-Lock Function: Instantly lock settings to prevent accidental changes.
• V-Span Function: Customize the voltage range to suit specific requirements.
• Advanced Metering: Low current range and current meter averaging for accurate measurements.
• DC Output Switches: Includes a "view limits" button for enhanced usability.
• Remote Sense Terminals: Selectable remote sensing for improved load regulation.
• Advanced Modes: Independent, Isolated Tracking, Ratio Tracking, and True Parallel modes on dual and triple models.

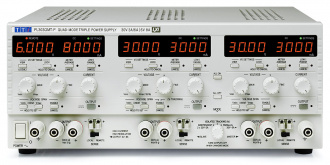

• High Current Output: Triple output model features high current, low voltage output.

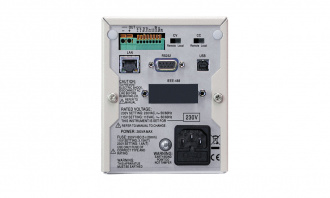

• Remote Interfaces (P and P-G Models):
• RS-232, USB, and LAN interfaces for seamless integration.
• LAN Interface complies with LXI standards.
• Analogue remote control of voltage and current (single output models only).
• Front and rear terminals for flexible connectivity.
• GPIB interface available in P(G) models.

Datasheet - (PDF / English)
